2004 to 2012 Ram Truck Automind 2 Handheld Programmer

Wrap Your Hand Around Some Serious Power! Introducing the latest in pre-loaded, pre-programmed power from the most trusted name in engineered engine efficiency. Banks is the only record-holding engine builder in the programming game, and now that expertise can be yours! The Banks AutoMind programmer comes ready to run with pre-loaded power right out of the box and right for the job at hand! Its calibrations were developed with power and increased MPG in mind. The AutoMind also provides service technician diagnostic capabilities with its ability to scan and clear vehicle trouble codes. Intense, usable, real horsepower only from Banks!



• Power, Fuel Economy and Performance
• Delivers power on demand by removing factory's power delay
• Internet updatable
• Flexible all-in-one programmer and scan tool
• New and improved user interface
• Full-color 2.8 inch screen
• Adjust or remove engine rev and/or top speed limiter
• Speedometer calibration based on tire size and/or gear ratio
• Tuned for torque management and shift points/firmness
• Control cylinder deactivation features
• Read and clear trouble codes
• Updatable, Windows 7 (or newer) and Mac OS

 Power & Torque Gains



5.9L 24v 250hp Cummins	2004	+115 HP & +225 lb-ft
5.9L 24v 305hp Cummins	2004	+130 HP & +270 lb-ft
5.9L 24v 325hp Cummins	2004-2005	+130 HP & +270 lb-ft
5.9L 24v Cummins	2006-2007	+130 HP & +270 lb-ft
6.7L 24v Cummins	2007-2012	+130 HP & +270 lb-ft

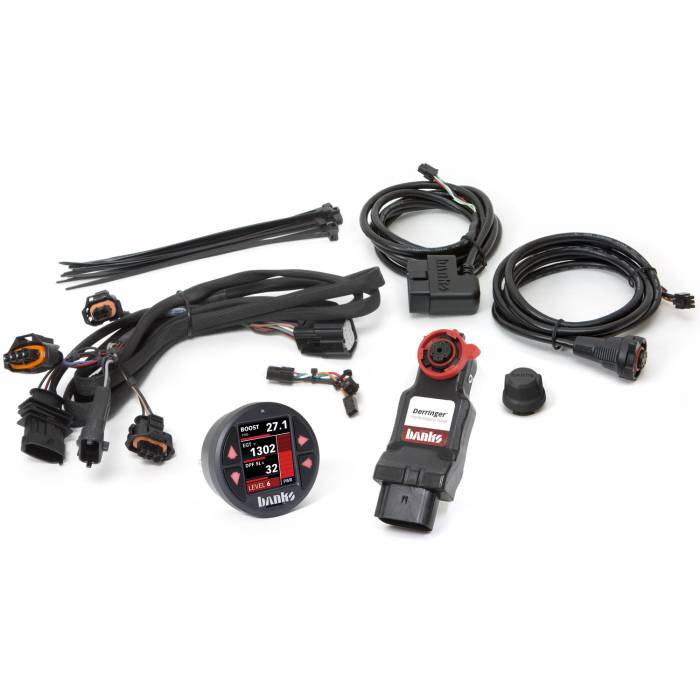

Derringer tuner with iDash1.8

to suit 2014 to 2018 Ram 1500 3.0L Eco Diesel

Adds up to 40HP & 63ft-lb of Torque

Stops the competition dead in their tracks. Results in our torque and power gains across the full operating rpm range, starting right off idle and marching to the shift point in each gear. Derringer is dyno calibrated to use multiple data inputs such as throttle position, rpm, vehicle speed, AFR, Knock and coolant temperature, just like your engine's ECU. Its microprocessor-based electronics are able to actively and safely optimize calibrations in real time. No competitive product does that.

Derringer has six switched settings with the included iDash 1.8 SuperGauge and produces Best in Class performance knocks you back in your seat. The Level 3 setting is for work use and has a great mid-range feel. When running Level 3 with a loaded work truck and/or pulling a trailer, your on-ramp merging speeds and passing times are greatly improved.

The electronics are molded into a waterproof connector, which is easily concealed and communicates using B-Bus (Banks Bus) with other devices such as our iDash 1.8 SuperGauge/Control Center. The Derringer connects in line with the Throttle Inlet Pressure (TIP) and Manifold Absolute Pressure (MAP) sensors. But unlike others, it also connects to the vehicle's OBDII diagnostic bus connector. A CAN (controller area network) transceiver chip communicates with OBD or B-Bus allowing our microprocessors to talk with the vehicle.

Health Monitoring: We monitor the health of Derringer 100 times a second. If the health monitoring system reveals any malfunction, the Derringer instantly bypasses itself, sets a device diagnostic code, and returns you to stock power. Plus, Derringer's special coolant temp monitoring prevents power addition when the engine is too cold or overheated. The Derringer also auto-adjusts power if knock occurs due to bad fuel.

Maximum safe power is all automatic with a Derringer - you just choose your setting.

Banks Derringer Tuner with ActiveSafety, includes iDash 1.8 for use with 2014-17 Ram 1500 and Grand Cherokee 3.0L EcoDiesel

• Easy Install
• Loaded with Features
• Value Priced
• Destroys the competition, not your vehicle!
• ActiveSafety protects engine/powertrain
• Adds up to 40 hp and 63 lb-ft
• Shaves 4 seconds off 0-100 mph times
• 6 power levels
• Interfaces with OBDII Port (On-Board Diagnostics/Information) to communicate directly with the vehicle ECU



Derringer for 6.7 Cummins is currently under Development

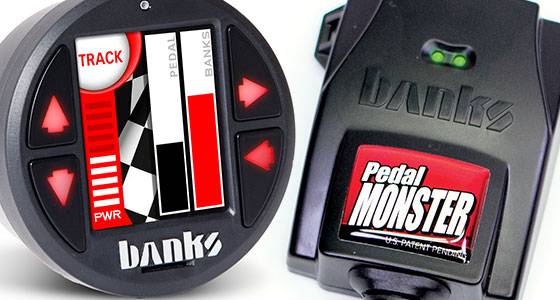

Pedal Monster Throttle Sensitivity Controller

to suit 2007 to current Rams

What Is It?

 https://vimeo.com/436638190

PedalMonster is the first OBD-II connected throttle sensitivity controller for gas and diesel vehicles. Controlled via Banks iDash or mobile app, PedalMonster is the only module of its kind to offer safety features like ActiveSafety®, Reverse Safety and Adjustable Low-Speed Trim.

• City, Sport, and Track modes, each with 10 sensitivity levels
• OBD-II connected
• ActiveSafety fail safe circuitry with Health Monitoring
• Reverse safety returns pedal to stock in reverse gear
• Adjustable Low-Speed Trim controls how fast sensitivity is added at slow speeds
• Powered by +12v via OBD, not low-overhead pedal circuit
• Controlled by iDash DataMonster, iDash SuperGauge and mobile app
• View PedalMonster’s activity in real-time via iDash and mobile app
• Simple plug-and-play installation
• Warranty friendly. Does not leave footprint after removal.



PedalMonster is controlled via iDash DataMonster, iDash SuperGauge, and PedalMonster mobile app (iOS and Android). View PedalMonster's activity in real-time. When used with iDash, monitor vital engine and transmission OBD-II data, control PedalMonster, Derringer tuner, and other Banks modules

The Pedal Monster has 3 different modes each mode has 10 levels of refinement which can be adjusted on the fly allowing you to tune out Dead spots in your pedal giving you a more responsive throttle.











TRACK
10 levels of increased sensitivity in the lower pedal travel range with boosted resolution in the upper travel range for finer control on the track. More power is delivered sooner making it ideal for performance and track use



SPORT
10 levels of improved sensitivity throughout for a more responsive driving experience. Gives your vehicle a sportier feel with a focus on the mid- to high-level throttle. More power is delivered in the mid-range ideal for when you want more get-up-and-go.



CITY
10 levels mapped for a linear characteristic throughout the pedal travel. Gives a more responsive feeling while retaining a smooth driving experience. Power is focused more on the higher range to prevent unintentional quick acceleration around town, ideal for city driving.





Safety Features
The Pedal Monster is the ONLY throttle sensitivity device with ActiveSafety. In the event of an internal or external circuit failure the system’s seamlessly returns the pedal to stock
If the Pedal Monsters health monitoring system reveals any malfunction, the Pedal Monster instantly bypasses itself, sets a device diagnostic code, and returns you to stock power.

Reverse Safety
The Pedal Monster returns the vehicle to stock throttle response when in reverse gear

Adjustable Low-Speed Trim
This feature allows you to adjust the rate at which Pedal Monster adds sensitivity at speeds under 15 km/h. This helps to avoid spinning the tires in low speed turns or on slippery surfaces

https://www.youtube.com/watch?v=rag8Mjeao5s&t=2s

You can also select transmission type: Automatic (default) or Manual. The Manual transmission setting does less boosting in the 0-20% pedal travel range (when compared to Automatic). This improves drivability during clutch engagement





Monster-Ram Intake Elbow Kit with Fuel Line, 3.5 inch Red Powder Coated.

For use with 2007.5-2018 Dodge/Ram 2500/3500 6.7L



Monster-Ram improves airflow from the intercooler. Flows 906 cfm (69.22 lbs/min) compared to Stock's measly 432 cfm (33.00 lbs/min). Raises boost without increasing backpressure at the turbine. Result: a more responsive, power efficient engine. Up to four 1/8 inch NPT ports for flexibility! The top two NPT ports are positioned to allow for proper atomization directly into the center of the air mass while preventing wall wetting. Accommodates stock mounting points including Temperature and Pressure sensors, wire harness and dipstick tube. At Banks Power, just enough is never enough when it comes to engine airflow. Maximum power, performance and efficiency are the ultimate goals, but to make it all happen the engine has to breathe freely and without needless restrictions. Finding ways to pump your engine full of cooler, denser air has always been the key. Our High-Ram intakes have always whipped the competition.

Our new Monster-Ram flat-out destroys it. Utilizing the latest in electronic computational fluid-dynamic technology, tested on the flow bench as well as on the dyno, and finally proven in the real world where the rubber meets the road, Monster-Ram is a beast that only Banks could have unleashed. A simple, direct-replacement casting, Monster-Ram is instant power, performance and acceleration gratification. The factory inlet is cramped and angular compared to Banks' larger, streamlined cast-metal Monster-Ram. It's the perfect upgrade whether you're just starting out or working to build a serious, purpose-built race machine. And with up to four ports for water/meth/propane/nitrous injection (or pressure/temp. sensors), the sky's the limit for performance expandability. Monster-Ram is CNC ported as well as the optional Banks Billet Intake Grid Heater Delete spacer.



https://www.youtube.com/watch?v=GMqY-axnHi8&t=30s

 Monster-Ram 6.7 Power Difference

The stock horn has quite a boost loss at the same flow, so now with a better flowing horn virtually all the boost produced by the turbos can get to the valves.

I can tell you this, when we hot rodded the first 5.9L common rail back in 2001, the Cummins guys sent us a lab engine that they had put an HX-40 Holset on and some bigger injectors. The engine made 402 hp. We dyno'ed it again on our end and got 405 hp so our dynos matched. We sawed off the stock manifold, made the first ever side draft intake casting, cleaned up the ports and picked up 135 hp at the same air/fuel ratio with the same turbo, 540 hp was the result. So there's a dyno comparison doing the same thing as the improved horn, only better.

We then installed a Banks cam and a larger VG turbo and brought it to 735 hp, put it in a Dakota, towed our trailer to Bonneville with it dropped the trailer and ran 222 mph.

— Gale Banks



 Differential Cover to suit 2003 to 2018 Ram with AAM 11.5" or 11.8" 14 Bolt Rear axle

Banks Ram-Air Differential Cover is unlike any other. After testing covers with flat-backs and those with larger fluid capacities, it was apparent that those covers do not cool as well as advertised and suffer from poor fluid dynamics. As a result, flat-backs reduce fuel economy. Banks Ram-Air differential cover extends lubrication life and retains fuel economy!





https://www.youtube.com/watch?v=vdtmDl5EDJ8&t=748s

The Banks Engineering team’s goal was to perfect fluid flow and reject BTUs from the fluid as fast the ring and pinion puts them in. If the fluid flow is impeded in any way, it results in resistance and aeration which reduce fuel economy and creates heat, thereby degrading the fluid and decreasing the lifespan of the gearset.



 Almost all aftermarket covers have fins for cooling. Unfortunately, those fins are almost useless because there’s little or no airflow immediately behind the differential. Nearly all aftermarket covers impede fluid flow. Why does this matter? Aim a fire hose at a brick wall. It turns out liquid doesn’t like 90° angles or obstructions.

Die-Cast Aluminum Construction
A380 aircraft aluminum die-cast for exceptional strength and precise fit

Magnetic Fill Plug
Magnetic fill plug. 20° angle for easy fill. Simplifies oil changes.

Chrome-Plated Hardware
12-point chrome-plated flanged mounting bolts.

Sight-Glass with Contrast Screen
Sight-glass with contrast screen and Viton O-ring seal.

Class-Leading Heat Rejection
24 external radiator fins offer 534 square inches of surface area to ensure optimal heat rejection.

Magnetic Drain Plug
Recessed magnetic drain plug. Simplifies oil changes.

Patented Ram-Air Scoops
Ram-Air system directs cool high-velocity air through radiator fins, eliminating the dead zone. Designed with breakaway scoops.

       Directional Fluid Guides

Axle-tube guides direct fluid to axle bearings without churn.

O-Ring Seal
Integrated No Mess Viton Seal. Dry-mount silicon high-pressure O-ring seal.

Precision Fit Machined Surface
CNC-machined surface ensures precise fit.

Internal Heat Absorption Fins
Internal absorber fins offer 120 square inches of surface area to transfer heat to external radiator fins without disrupting fluid flow.



Simple Fluid Change
No need to remove cover to change fluid.

Lubricant Raceway
Ring gear raceway provides path for fluid flow to pinion and ring gear-bearing sets

Ram-Air System w/Breakaway Scoops
Ram-air scoop break away point prevents damage if scoop is snagged.

Air Velocity

After affixing anemometers fore and aft of the rear differential, a dead zone was discovered. Like the wing of plane, the rear differential splits the air. At a road speed of 70 mph, air speed was measured at 32 MPH in front of the differential and 11 MPH 20” behind the differential. This indicated an area of dead air.

This low velocity dead zone extends as far out as 36” from the back face of the cover. No matter how deep the cooling fins are, they’re unable to adequately reject heat due to inadequate airflow over the surface of the fins.

This discovery resulted in the Ram-Air scoop concept. As the truck moves through the air, cool static air is forced into the Ram-Air scoops and directed 90° up and through the long, thin heat radiation fins.



The Banks differential cover is fundamentally different from its competition because it utilizes Ram-air scoops that direct air through channeled fins,cooling the differential and internal oil temperatures.













The competition has no way of directing airflow, their covers leave a deadzone so temperatures rise faster and fall slower, meaning your oil works harder and components wear faster, costing you fuel economy.



 The Banks Ram-Air cover features 169% more exterior heat radiation surface area and 21% more internal heat absorption surface area than Mag-Hytec. This is impressive considering the Banks cover retains the stock 4-quart fluid capacity.
